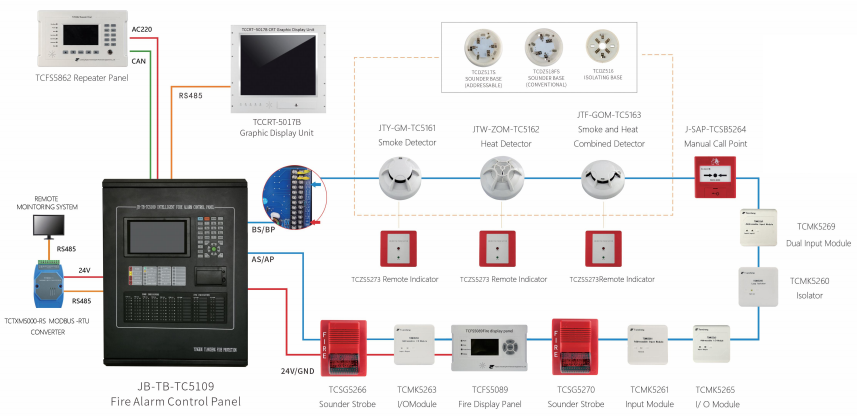

LPCB approved professional new generation intelligent addressable fire alarm system TC5109. For residential security, commercial security, industry security project fire security control fire alarm and linkage security system.
Intelligent bus control mode:max 255 addressable points per loop,max 4 loops,max 48 zones
Loop card type design:1-4 loop cards can be selected
Glass fuse per loop
Black box function
Self-design loop protocol
Wall-mounted structure,compac and exquisite
Akzo outer coating;anti-corrosion
Language:simplified Chinese,Enlish,Turkish and Russian(cus to mized).Self-design loop protocol
TECHNICAL SPECIFICATIONS
Volate AC230V(50HZ), Voltage range: +10%–15%
Current 1A
Outputs Fire output .Fault output .24V power output .Loop output
Capacity 1020/4 loops addressable points
LCD screen size 7-inch color LCD screen
Standby bettery 12V/12AH sealed lead acid battery*2
Dimension(L*W*H) 420mm×140mm×560mm
Operating environment Temperature:-5℃-+50℃: Relative Humidity:≤95%non- condensing
Communication interface RS485、CAN、USB
DETAILS
The fire alarm control panel is mounted on the wall through 4 mounting holes, the dimensions of the mounting holes are shown in the picture.

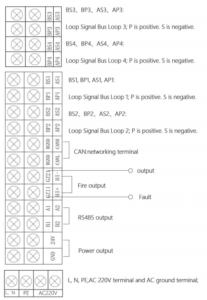

The right side of the control panel has 8 wiring holes, which are easy for wiring between the control panel and field devices.
There are also 5 knock holes at the top, if the holes on the right side are not enough.
